Technical Highlights
Fluid Optimization Design
The flow splitter is optimized using CFD simulation to reduce eddy current generation.
The branch pipe connection angle is precisely controlled at 45°, reducing pressure loss by 35%.
The internal cavity is mechanically polished, with a roughness Ra≤6.3μm.
Full Protective Coating System
360° full-immersion electrophoresis process, eliminating any coating dead angles.
40-50μm epoxy resin electrophoretic layer, salt spray resistance ≥1200 hours.
Surface polyurethane transparent topcoat, UV resistant and anti-aging.
Performance Parameters
Structural Performance
Working Pressure: 4.0MPa (PN40)
Burst Pressure: ≥8.0MPa
Applicable Temperature: -30℃～130℃
Material Standard: Malleable Cast Iron
Corrosion Resistance
1 No red rust after 000 hours of neutral salt spray test
Coating intact after 30-day cyclic corrosion test
Adhesion test reaches Grade 0 standard (cross-cut test)

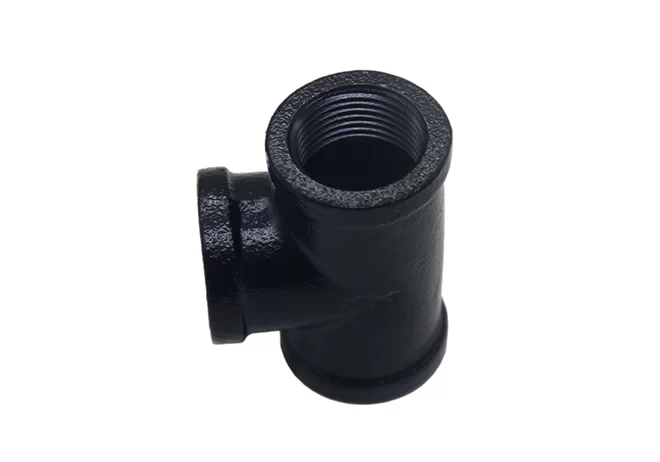

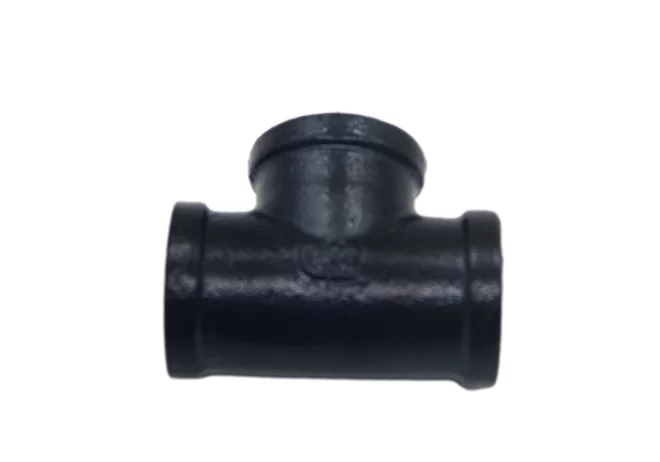

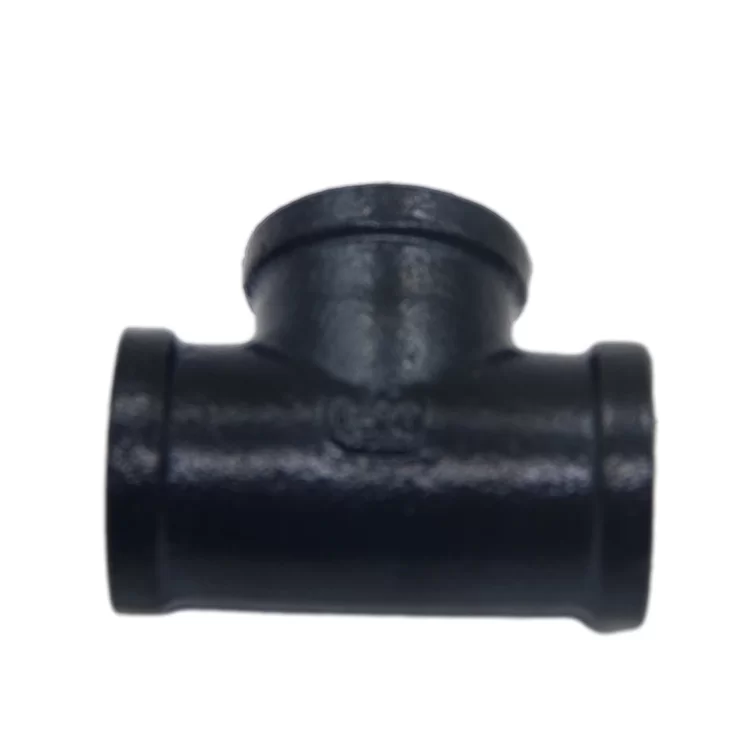

Product Series: Equal diameter tees: 1/2"～3" full range
Reducing tees: 1"×1"×3/4", 1-1/4"×1-1/4"×1", 2"×2"×1-1/2"
Special tees: 45° angled tees, Y-type diverter tees
Coating colors: Standard black/Custom gray
Applications: Chemical pipelines: Diversion and transportation systems for corrosive media
Marine engineering: Distribution and connection of seawater pipelines in ship hulls
Environmental facilities: Diversion networks for sewage treatment plants
Coastal buildings: Water supply and drainage systems in high salt spray environments
Installation specifications:
① Before installation, confirm that the medium flow direction is consistent with the tee direction.
② Use a torque wrench to tighten gradually in a diagonal sequence.
③ It is recommended to add pipe support within 30cm downstream of the branch pipe.
④ Conduct a pressure test (1.5 times the working pressure) 24 hours after installation.
Quality Assurance: 100% penetrant testing of castings.
Multi-point measurement of electrophoretic coating thickness (≥16 points per piece).
6.0MPa water pressure test, holding pressure for 5 minutes.
Full inspection of dimensional accuracy, tolerance controlled within ±0.2mm.
Selection Guide: Standard flow distribution: Equal diameter tee; Main pipe reduction: Reducing tee; High-pressure system: Thickened series tee; Special media: Optional anti-corrosion lining model.
Malloy electrophoretic tees—providing reliable flow distribution solutions for complex piping systems with comprehensive anti-corrosion protection and precise fluid design!
